Description

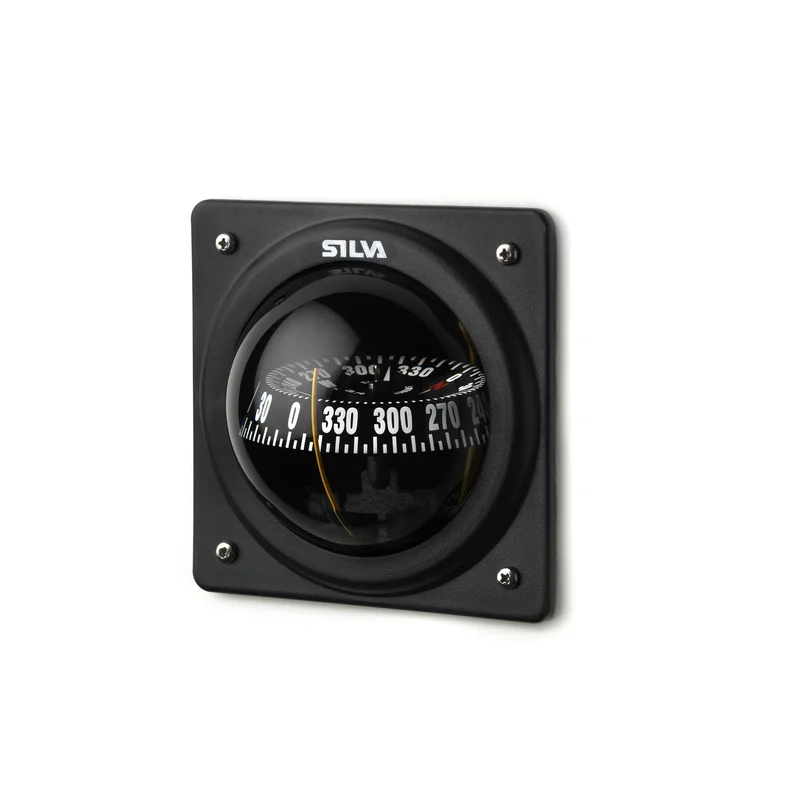

70P is a bulkhead mount compass designed for yachtsmen demanding absolute accuracy in all conditions. Its compact size is ideal for smaller boats.
• DOUBLE SCALES
- Can be read from front and above
• CURVED LUBBER LINES
- Clear scales and quick readability from multiple angles
• SUITABLE FOR ALL BOATS
- Fits in all boat types
• COMPACT SIZE
- Small and flexible
• VARIANT
- Magnetic North
70P is a bulkhead mount compass designed for yachtsmen that demand absolute accuracy and a steady card in all conditions.
The compass handles unlimited slope of the keel line and a 30º heeling angle. The curved lubber line enables swift and clear reading at a glance without parallax errors. With a main steering scale on the horizontal part and direct reading on the vertical edge,
70P is ideal for boats with a sitting as well as a standing helmsman. It can be mounted at most angles and its compact size (70 mm) makes it suitable for smaller boats.
| Article number | 34990-9011 |
|---|---|
| Accuracy |
± 1° (17.8 mils) |
| Apparent card diameter |
70mm (2.7 inch) |
| Built-in compensator |
Optional |
| Card type |
Cone |
| Compatibility |
Kayaks, Powerboats, Sailboats |
| Dimensions |
95x72mm |
| Gimballed cradle |
No |
| Heeling angle |
Roll: 30° Pitch: 30° |
| Heeling angle scale |
No |
| Illumination |
Optional |
| Lubber lines |
Centre |
| Material |
ABS, Acrylic |
| Memory ring |
No |
| Mounting |
Bulkhead |
| Mounting angle |
+10° to +110° |
| Temperature operating range |
-10°C to +70°C |
| Variant |
Magnetic North |
| Weight |
344g |
